HOW TO USE
RLB-F smart prepaid mechanical heat meter is a kind of instrument used to measure and display the released heat power when the heat-carrying liquid pass through the heat exchange system. It consists of flow sensor, microprocessor and matched pair temperature sensor. The microprocessor gets the flow signal through flow sensor and the signal of water temperature at the entrance and exit from the temperature measuring circuit, and then calculates exchanged heat by the heat-carrying liquid according to the standard heat calculation formula.
RLB-F has prepaid function and with the supporting of Smart Meter Management System, it provides a new way of heat power management. It provides many benefits to both heat power companies and end users, including guaranteed payment and arrears collection, extensive management tools through detailed report functionality and the ability for customers to manage their consumption more easily.
RLB-F is designed and developed on the reference of the European Standard EN1434 and OIML-R75 International Standard, with high performance and low energy consumption, and in line with the product standard of CJ128-2007 Heat meter issued by Ministry of Construction of China.
FUNCTIONS
1. Prepaid Function
2. The tube adopts forging technology and with straight-through body.
3. Alarms when voltage is low.
4. High definition and wide temperature LCD display
5. Flow rate has 8 levels and are separately adjusted, with high precision.
6. Alarms when the temperature sensor is disconnected or has a short circuit.
7. Measuring mechanism has no moving parts and no wear and tear forever. The measuring accuracy will not be influenced by usage period.
8. Optical interface, long distance communication, read meter by PDA.
9. M-BUS communication.
10. Horizontal or vertical installment.
TECHNICAL PARAMETERS
|
Caliber(mm)
|
Common
Flowrate
|
Minimum
Flowrate
|
Maximum
Flowrate
|
|
DN15
|
1.5 m3/h
|
0.03
m3/h
|
3.0
m3/h
|
|
DN20
|
2.5
m3/h
|
0.05
m3/h
|
5.0
m3/h
|
|
DN25
|
3.5
m3/h
|
0.07
m3/h
|
7.0
m3/h
|
|
DN32
|
6.0
m3/h
|
0.12
m3/h
|
12.0
m3/h
|
|
Minimum
display of flow rate: 0.01m3(working status)
0.00001m3(testing status)
|
|
Minimum
display of heat power:1kWh(working status)
0.001kWh(testing status)
|
|
Temperature
sensor
|
Minimum
temperature difference
|
1℃or 3℃
|
|
Maximum
temperature difference
|
90℃
|
|
Minimum
display temperature
|
0.1℃
|
|
Static
working current
|
< 7μA
|
|
Digit
number of display screen
|
8
numbers
|
|
Maximum
accumulated working time
|
4.2x109 hours(Only final 8 numbers can be displayed when accumulated working time is
more than 99999999 hours)
|
|
Maximum
accumulated flow rate
|
4.2x109 m3(Only final 8 numbers can be displayed when accumulated flow rate is
more than 999999.99 m3)
|
|
Accuracy
|
Class
3
|
|
Pressure
resisting
|
PN16
|
|
Loss
of pressure
|
≤0.025Mpa
|
|
Working
status indicator
|
Twinkling
of SUNTRONT LOGO on the top left corner of the LCD
|
|
Alarm
value
|
1000kWh
|
|
Mini
purchased heat power
|
1kWh
|

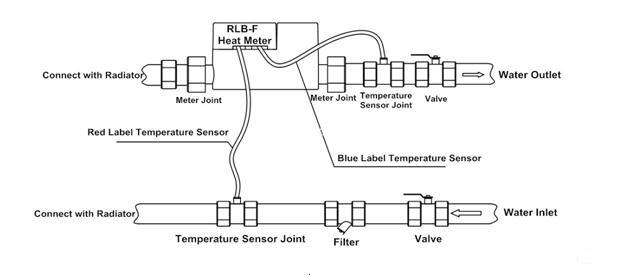

INSTALLATION
1. A filter shall be installed in front of the ultrasonic
heat meter.
2. Before installation, please clean the pipe firstly, to
avoid that there is stone or other sundries inside the pipe.
3. During the installation, please don’t wrench, move or
knock the component inside of the pipe, to avoid knock against the meter body.
4. Please leave enough space for repair. The installation
shall follow the water flow direction on the pipe. The heat meter is installed
horizontally and easy for checking and swiping card.
5. When connect the meter with the pipe, please don’t use
excessive force, to avoid damage the sealing rubber mat, and it may cause the
water leakage.
6. During the
transportation process, please handle them with care to avoid knocking and
cannot store the meters at strong electromagnetic field.
DIMENSION

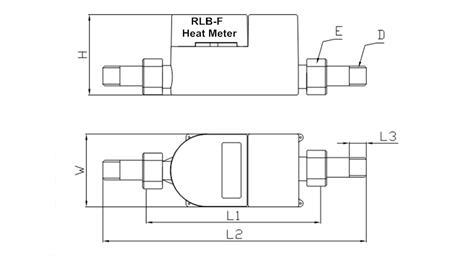

1) Dimension of RLB-F series heat meter:
|
Caliber
|
L1(mm)
|
L2（mm）
|
L3(mm)
|
H(mm)
|
W(mm)
|
E
|
D
|
|
DN15
|
165
|
255
|
14
|
93
|
84
|
G3/4B
|
R1/2
|
|
DN20
|
195
|
295
|
16
|
93
|
84
|
G1B
|
R3/4
|
|
DN25
|
205
|
321
|
18
|
100
|
84
|
G1-1/4B
|
R1
|
2) Dimension of insert for temperature sensor
|
Model
|
Total
Length A
|
Internal
Thread Length B
|
|
DN15
|
52mm
|
11mm
|
|
DN20
|
57mm
|
13mm
|
|
DN25
|
68mm
|
15mm
|
MAIN TECHNIQUES
1. Alarms when voltage is low.
2. Automatic reduce energy consumption according to flow rate
3. Automatic data correction technology.
4. Float E-ball valve technique.
5. Intelligent blockage resistant and valve rust remove technology
6. The flow measurement adopts the patent technology of wireless digital monitoring, no mechanic gears, anti-corrosive and anti-attack.
7. Alarms when the temperature sensor is disconnected or has a short cut.
8. High definition and wide temperature LCD display.
9. Flow rate has 8 levels and are separately adjusted, with high precision.
10. Alarms by closing the valve when remaining heat power is on limiting level
11. Automatically valve testing technology.
12. Contactless IC card technique.
13. Ultra-low energy consumption (static power consumption is less than 7μA).
14. Optical interface, long distance communication, can read meter by PDA.
15. M-BUS communication.
16. All-In-One technique, one IC card to manage all the meters in house.
