HOW TO USE
RLB-C series heat meter is a kind of instrument used to measure and display the released heat power when the heat-carrying liquid pass through the heat exchange system.
RLB-C heat meter is consisted of flow sensor, microprocessor and matched pair temperature sensor.
The meter is designed and developed on the reference of the European Standard EN1434 and OIML-R75 International Standard, and with high performance and low energy consumption, and in line with the product standard CJ128-2007 Heat Meter issued by Ministry of Construction of China.
FUNCTIONS
1. Alarms when voltage is low.
2. High definition and wide temperature LCD display
3. Flow rate has 8 levels and are separately adjusted, with high precision.
4. Alarms when the temperature sensor is disconnected or has a short circuit.
5. Measuring mechanism has no moving parts and no wear and tear forever. The measuring accuracy will not be influenced by usage period.
6. Optical interface, long distance communication, read meter by PDA.
7. M-BUS communication.
8. Horizontal or vertical installment.
TECHNICAL PARAMETER
|
Caliber(mm)
|
Common
flow
rate
|
Mini
flow
rate
|
Max
flow
rate
|
|
DN15
|
1.5
m3/h
|
0.03 m3/h
|
3.0 m3/h
|
|
DN20
|
2.5 m3/h
|
0.05 m3/h
|
5.0 m3/h
|
|
DN25
|
3.5 m3/h
|
0.07 m3/h
|
7.0 m3/h
|
|
DN32
|
6.0 m3/h
|
0.12 m3/h
|
12.0 m3/h
|
|
Minimum display of flow rate: 0.01m3/h(working
status) 0.00001m3/h(testing status)
|
|
Minimum display of heat
power:1kWh(working status)
0.001kWh(testing status)
|
|
Temperature sensor
|
Temperature range
|
4℃～95℃
|
|
Temperature difference range
|
3K～90K
|
|
Minimum display temperature
|
0.1℃
|
|
Static working current
|
< 7μA
|
|
Digit number of display screen
|
8 numbers
|
|
Maximum accumulated working time
|
4.2x109 hours(Only final 8 numbers can be
displayed when accumulated working time is more than 99999999 hours)
|
|
Maximum accumulated flow rate
|
4.2x109 m3(Only final 8 numbers can be
displayed when accumulated flow rate is more than 999999.99 m3)
|
|
Accuracy
|
Class 2
|
|
Pressure resisting
|
1.6MPa
|
|
Loss of pressure
|
≤0.025Mpa
|
|
Working status indicator
|
Twinkling of SUNTRONT LOGO on the top
left corner of the LCD
|
INSTALLATION
1. A filter shall be installed in front of the ultrasonic heat meter.
2. Installing the valve in front of the filter will be convenient for repair and clean the filter.
3. Before installation, please clean the pipe firstly, to avoid that there is stone or other sundries inside the pipe.
4. During the installation, please don’t wrench, move or knock the component inside of the pipe, to avoid knock against the meter body.
5. Please leave enough space for repair. The installation shall follow the water flow direction on the pipe.
6. The heat meter can be installed horizontally or vertically on the water inlet of the pipe. When installed horizontally, two pieces of energy converter must be in horizontal; when installed vertically, they must be installed on the straight pipe with the water flow on up direction.
7. When connects the meter with the pipe, please don’t use excessive forces, to avoid damage the sealing rubber mat, and it may cause the water leakage.
8. During the transportation process, please handle them with care to avoid knocking and cannot store the meters at strong electromagnetic field.
DIMENSION

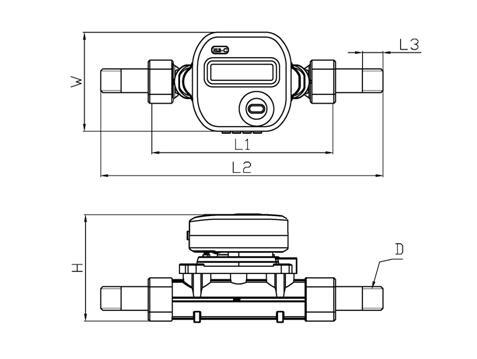

1) Dimension of RLB-C series heat meter:
|
Caliber
|
L1
|
L2
|
L3
|
H
|
W
|
D
|
|
DN15
|
110
|
200
|
14
|
95
|
95
|
R1/2
|
|
DN20
|
130
|
230
|
16
|
100
|
95
|
R3/4
|
|
DN25
|
160
|
276
|
18
|
107
|
95
|
R1
|
|
DN32
|
180
|
300
|
20
|
114
|
95
|
R1-1/4
|
2) Dimension of insert for temperature sensor
|
Model
|
Length
A
|
Length
B
|
|
DN15
|
51.5mm
|
12.5mm
|
|
DN20
|
53mm
|
13.5mm
|
|
DN25
|
55mm
|
14.5mm
|
|
DN32
|
76.5mm
|
18mm
|
MAIN TECHINIQUES
1. Automatic data correction technology.
2. High definition and wide temperature LCD display.
3. Flow rate has 8 levels and are separately adjusted, with high precision.
4. Ultra-low energy consumption (static power consumption is less than 7μA).
5. The tube adopts forging technology and with straight-through body.
6. Measuring mechanism has no moving parts and no wear and tear forever. The measuring accuracy will not be influenced by using period.
7. Optical interface, long distance communication, can read meter by PDA.
