HOW TO USE
RLBF-C has prepaid function and with the supporting of smart meter management system, it provides a new way of heat power management.
It provides many benefits to both heat power companies and end users, including guaranteed payment and arrears collection, extensive management tools through detailed report functionality and the ability for customers to manage their consumption more easily.
RLBF-C is designed and developed on the reference of the European Standard EN1434 and OIML-R75 International Standard, and has high performance and low energy consumption, and in line with the product standard of CJ128-2007 Heat meter issued by Ministry of Construction of China.
FUNCTIONS
1. Prepaid function
2. Alarms when voltage is low.
3. High definition and wide temperature LCD display
4. Flow rate has 8 levels and are separately adjusted, with high precision.
5. Alarms when the temperature sensor is disconnected or has a short cut.
6. Measuring mechanism has no moving parts and no wear and tear forever. The measuring accuracy will not be influenced by using period.
7. Optical interface, long distance communication, read meter by PDA.
8. M-BUS communication.
9. Horizontal or vertical installment.
TECHNICAL PARAMETERS
|
Caliber(mm)
|
Common
flow
rate
|
Minimum
flow
rate
|
Maximum
flow
rate
|
|
DN15
|
1.5
m3/h
|
0.03
m3/h
|
3.0
m3/h
|
|
DN20
|
2.5
m3/h
|
0.05
m3/h
|
5.0
m3/h
|
|
DN25
|
3.5
m3/h
|
0.07
m3/h
|
7.0
m3/h
|
|
DN32
|
6.0
m3/h
|
0.12
m3/h
|
12.0
m3/h
|
|
Minimum
display of flow rate: 0.01m3(working status)
0.00001m3(testing status)
|
|
Minimum
display of heat power:1kWh(working status)
0.001kWh(testing status)
|
|
Temperature
sensor
|
Minimum
temperature difference
|
1℃ or 3℃
|
|
Maximum
temperature difference
|
90℃
|
|
Minimum
display temperature
|
0.1℃
|
|
Static
working current
|
< 7μA
|
|
Digit
number of display screen
|
8
numbers
|
|
Maximum
accumulated working time
|
4.2x109 hours(Only final 8 numbers can be displayed when accumulated working time is
more than 99999999 hours)
|
|
Maximum
accumulated flow rate
|
4.2x109 m3(Only final 8 numbers can be displayed when accumulated flow rate is more
than 999999.99 m3)
|
|
Accuracy
|
Class
2
|
|
Pressure
resisting
|
1.6MPa
|
|
Loss
of pressure
|
≤0.025Mpa
|
|
Working
status indicator
|
Twinkling
of SUNTRONT LOGO on the top left corner of the LCD
|
|
Alarm
Value
|
1000kWh
|
|
Mini
purchased heat power
|
1kWh
|

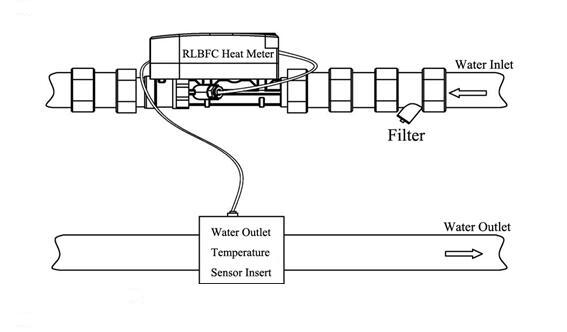

INSTALLATION
1) Before
installation, please clean the pipe firstly, to avoid that there is stone or
other sundries inside the pipe. A filter shall be installed in
front of the ultrasonic heat meter.
2) Installing the valve in front of the filter will be
convenient for repair and clean the filter.
3) During the installation, please don’t wrench, move or knock
the component inside of the pipe, to avoid knock against the meter body.
4) Please leave enough space for repair. The installation shall
follow the water flow direction on the pipe. The heat meter is installed horizontally
and easy for checking and swiping card.
5) The heat meter
can be installed horizontally or vertically on the water inlet of the pipe.
When installed horizontally, two pieces of energy converter must be in the same
horizontal plane; when installed vertically, they must be installed on the
straight pipe with the water flow on up direction.
6) When connect the meter with the
pipe, please don’t use excessive force, to avoid damage the sealing rubber mat,
and it may cause the water leakage.
7) During the
transportation process, please handle them with care to avoid knocking and
cannot store the meters at strong electromagnetic field.
DIMENSION

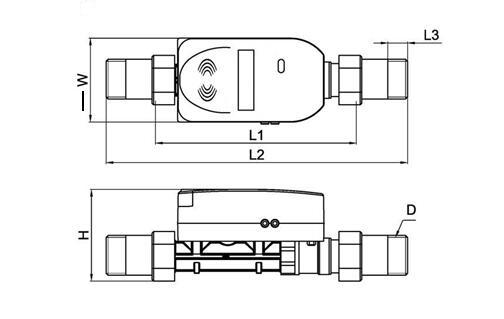

1) Dimension of RLBF-C series heat meter
|
Caliber
|
L1
|
L2
|
L3
|
H
|
W
|
D
|
|
DN15
|
165
|
255
|
14
|
77
|
83
|
R1/2
|
|
DN20
|
195
|
295
|
16
|
82
|
83
|
R3/4
|
|
DN25
|
225
|
341
|
18
|
97
|
83
|
R1
|
|
DN32
|
250
|
370
|
20
|
100
|
83
|
R1-1/2
|
2) Dimension of installation joint for temperature sensor
|
Caliber
|
Total
length (A)
|
Length
of internal thread (B)
|
|
DN15
|
51.5
|
12.5
|
|
DN20
|
53
|
13.5
|
|
DN25
|
55
|
14.5
|
|
DN32
|
76.5
|
18
|
MAIN TECHNIQUES
1. Alarms when voltage is low.
2. Automatic data correction technology.
3. Alarms when the temperature sensor is disconnected or has a short cut.
4. High definition and wide temperature LCD display.
5. Flow rate has 8 levels and are separately adjusted, with high precision.
6. Float E-ball valve technique.
7. Intelligent blockage resistant and valve rust remove technology
8. Alarms by closing the valve when remaining heat power is on limiting level
9. Automatically valve testing technology
10. Ultra-low energy consumption (static power consumption is less than 7μA).
11. The tube adopts forging technology and with straight-through body.
12. Measuring mechanism has no moving parts and no wear and tear forever. The measuring accuracy will not be influenced by using period.
13. Optical interface, long distance communication, can read meter by PDA.
14. Horizontal or vertical installation.
15. M-BUS communication.
16. All-In-One technique, one IC card to manage all the meters in house.
