HOW TO USE
1. The user takes the IC card to the electric power administration department (or the electric power sales office) and pays for the electric power firstly, then the staff of the electric power administration department inputs the relevant data of purchased electric power into the IC card through software and IC card reader-writer.
2. User takes back his IC card and swipes it on the induction area of the energy meter (contactless IC card energy meter) and the data of purchased electric power will be automatically input into the energy meter.
3. After the energy meter receives the information, it will switch on and the electric power will be supplied.
4. When the remaining power amount is equal to the alarm amount, the energy meter will alarm by power cut. The user can use the remaining power amount by swiping the IC card again on energy meter, and when the remaining power is used up, power will be cut again and the user shall buy electric power again.
FUNCTIONS
1. Adopt contactless IC card (RF card) technique, waterproof, moisture-proof, dustproof, anti-wear, and anti-electromagnetic attack.
2. Mechanical wheel and LED double display, to avoid the disputes between the users and the power supply company.
3. Adopt imported components, such as single chips from USA Microchip Corp and the memory from ATMEL, which can guarantee the quality of product, more safe, reliable and solid operation.
4. One meter with one IC card and the IC cards cannot be interchangeable.
5. The IC card of different power Supply Company cannot be interchangeable.
6. Transmit data by IC card bidirectional, convenient for management.
7. In case of reverse connection, the meter still can record the used electricity to prevent illegal use of power.
8. Load identification function: when test that the malignant load power exceeds the alarm power (can be adjusted, generally it is 300W), the meter will switch off to stop power supply and after 6 minutes the meter will automatically switch on to supply power again (the meter with load identification has such function).
TECHNICAL PARAMETERS
1. Degree of accuracy: 1.0, 2.0 (please see the name plate)
2. Elementary current Ib (rated maximum current Imax):2.5 (10)A, 5(20)A、10(40A), 15(60)A, 20(80)A
3. Meter constant: 3200imp/KWh, 1600imp/KWh
4. Reference voltage: 220V
5. Reference frequency: 50Hz
6. Working voltage scope: AC220±20％V
7. Power consumption: ＜0.5W
8. Environment conditions for working: -20℃～＋55℃, relative humidity not exceed 85％(+25℃)
9. Data in the meter can be kept for 10 years on the condition of no power exists.
10. Start up: when the reference voltage, reference frequency and COSф=1.0, and the load current is 0.4%Ib, the sampling indicator light can twinkle continually.
11. Shunt running: when use 115% rated voltage for the energy meter, and the current circuit is disconnect

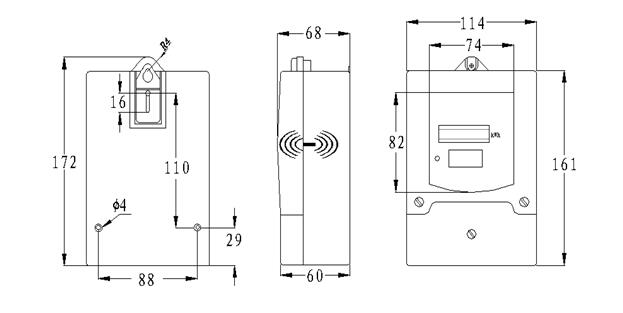

DIMENSION
MAIN TECHNIQUES
1. Contactless IC card (RF card) technique, waterproof, moisture-proof, dustproof, anti-wear, and anti-electromagnetic attack.
2. Mechanical wheel and LED double display, to avoid the disputes between the users and the power supply company.
3. Adopt imported components, such as single chips from USA Microchip Corp and the memory from ATMEL, which can guarantee the quality of product, more safe, reliable and solid operation.
4. One meter with one IC card and the IC cards cannot be interchangeable.
5. The IC card of different power Supply Company cannot be interchangeable.
6. Transmit data by IC card bidirectional, convenient for management.
7. In case of reverse connection, the meter still can record the used electricity to prevent illegal use of power.
8. Load identification function: when test that the malignant load power exceeds the alarm power (can be adjusted, generally it is 300W), the meter will switch off to stop power supply and after 6 minutes the meter will automatically switch on to supply power again (the meter with load identification has such function).
