HOW TO USE
The system supports different communication modes such as Ethernet way, GPRS fixed IP, GPRS unfixed IP and 232 serial port. This system supports third party charge types. The system support cold water meter, hot water meter, drinking water meter, recycled water meter, heat meter for heating, heat meter for colding, gas meter, energy meter, etc.

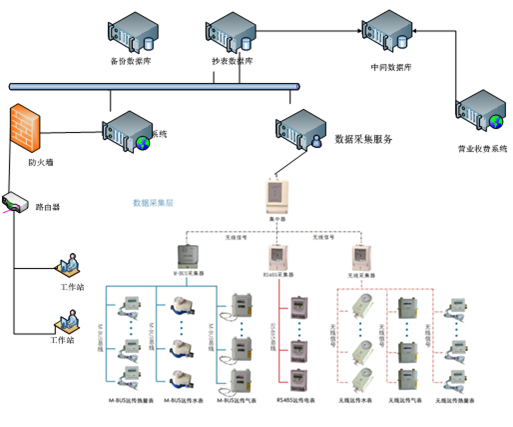

The system includes two parts: management system and data collection system:

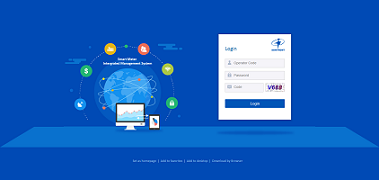

The management system adopts B/S (browser/server) architecture. Users only need a browser to use without download software. This B/S architecture solved the slow-footed problem caused by mass data.
The meter reading system is used for manage device communication, receive/send data, receive the command of management system, 7*24 hours operate on Server.
FUNCTIONS
This system consist of two parts: management system (management terminal) and data collection (meter reading terminal).

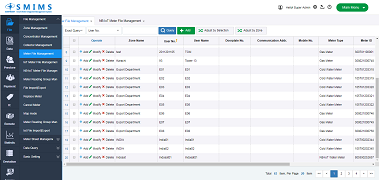

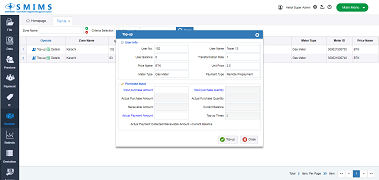

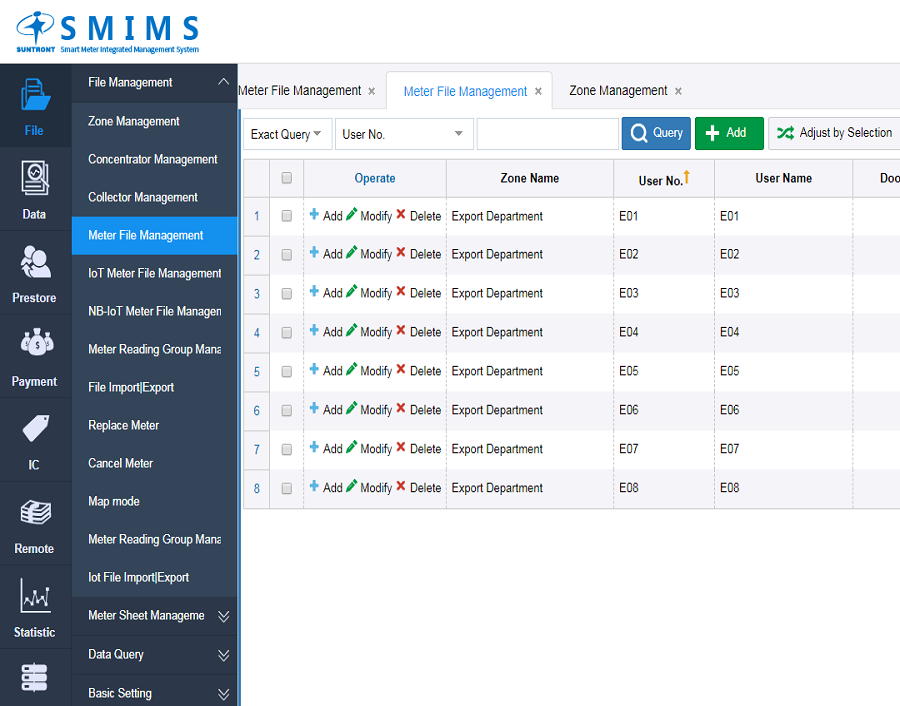

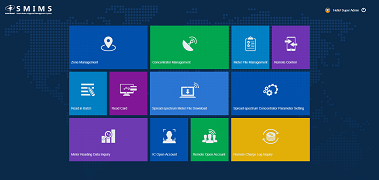

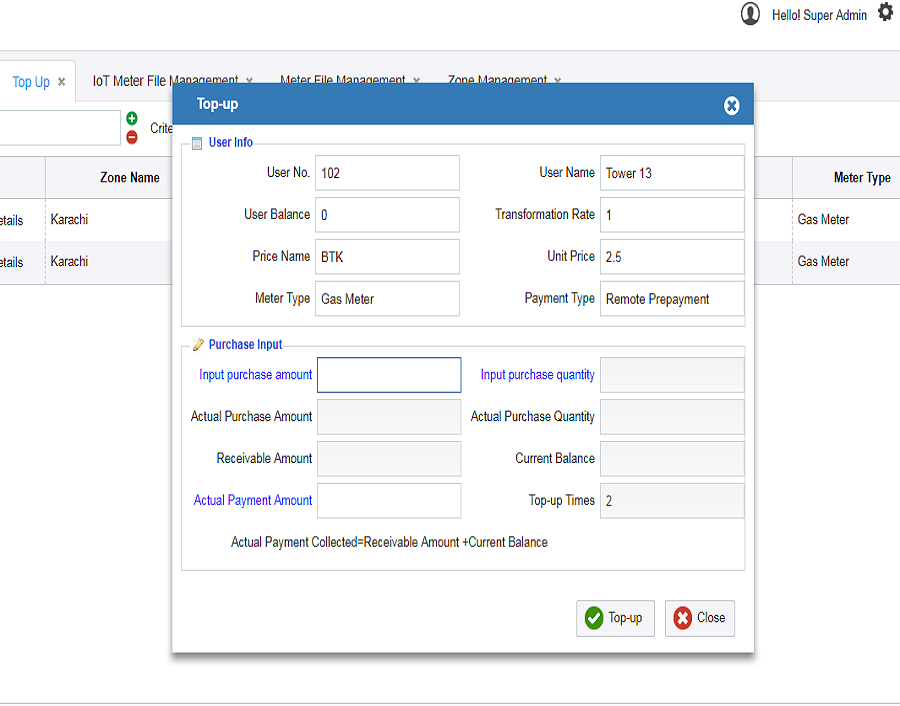

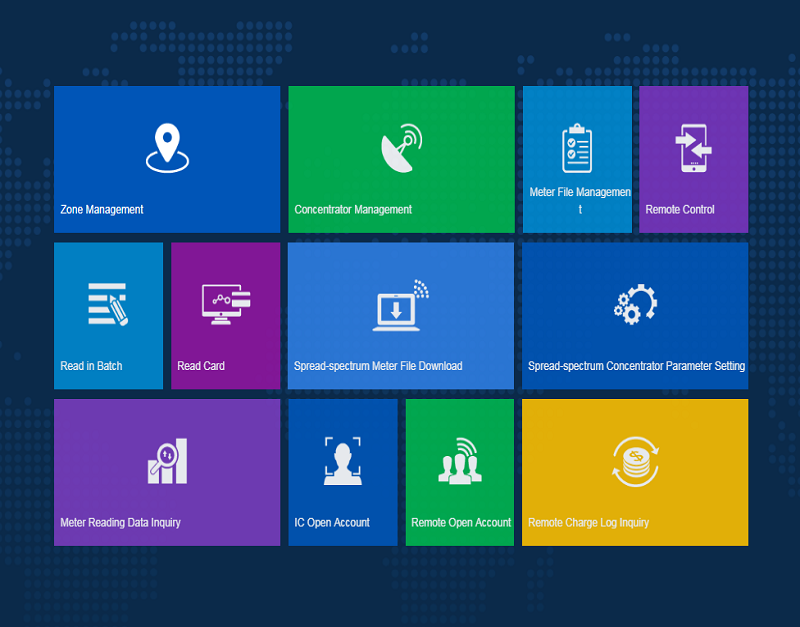

The management terminal is used for parameter setting, region management, equipment file management, user and meter file management, remote reading/control, data inquiry, etc.
Meter reading terminal is used for device communication, send/receive data, and receive the control command from management terminal.
TECHNICAL PARAMETERS
Operating System:
Windows XP, Windows 2003, Windows 7, Windows 2008
Hardware Configuration Suggestion:
2.0G CPU, 2.0G internal storage, 1024*768 display,10G hard disk
Software Demand:
Data Base: SQL Server 2000, SQL Server 2005, SQL Server 2008
WEB Server: IIS5, IIS6, IIS7
Data Collection Service
Management System
Other Demands:
GPRS communication method: Internet fixed IP
The web server must have fixed LAN IP while LAN access; web server must have WAN fixed IP, when WAN access.
Database (SQL Server), IIS, .Net4.0 need to be installed before install the software. Specified installation method please refer to "System Maintenance Instructions".
INSTALLATION
Operating System:
Windows XP, Windows 2003, Windows 7, Windows 2008
Hardware Configuration Suggestion:
2.0G CPU, 2.0G internal storage, 1024*768 display,10G hard disk
Software Demand:
Data Base: SQL Server 2000, SQL Server 2005, SQL Server 2008
WEB Server: IIS5, IIS6, IIS7
Data Collection Service
Management System
Other Demands:
GPRS communication method: Internet fixed IP
The web server must have fixed LAN IP while LAN access; web server must have WAN fixed IP, when WAN access.
Database (SQL Server), IIS, .Net4.0 need to be installed before install the software. Specified installation method please refer to "System Maintenance Instructions".
